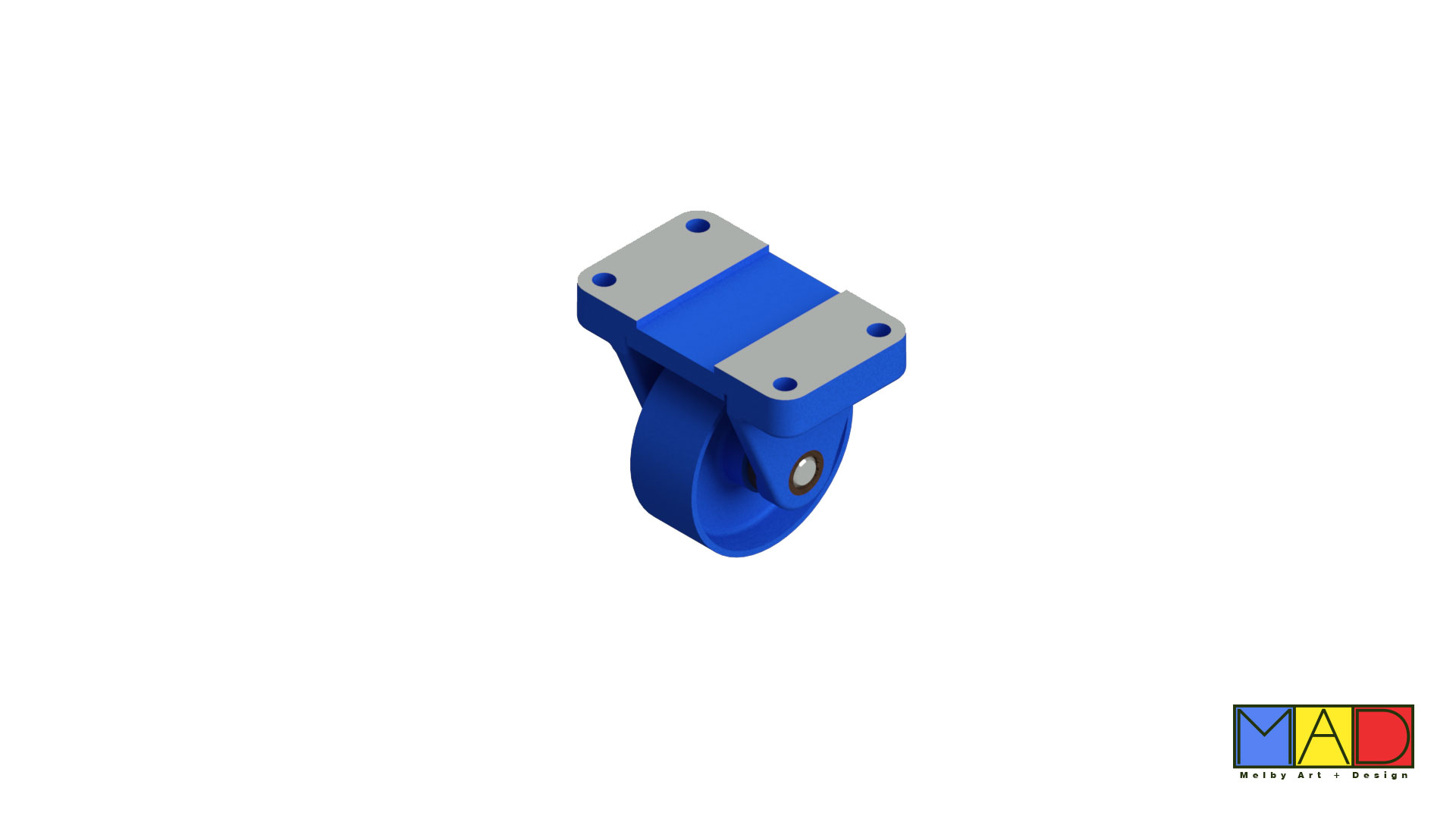

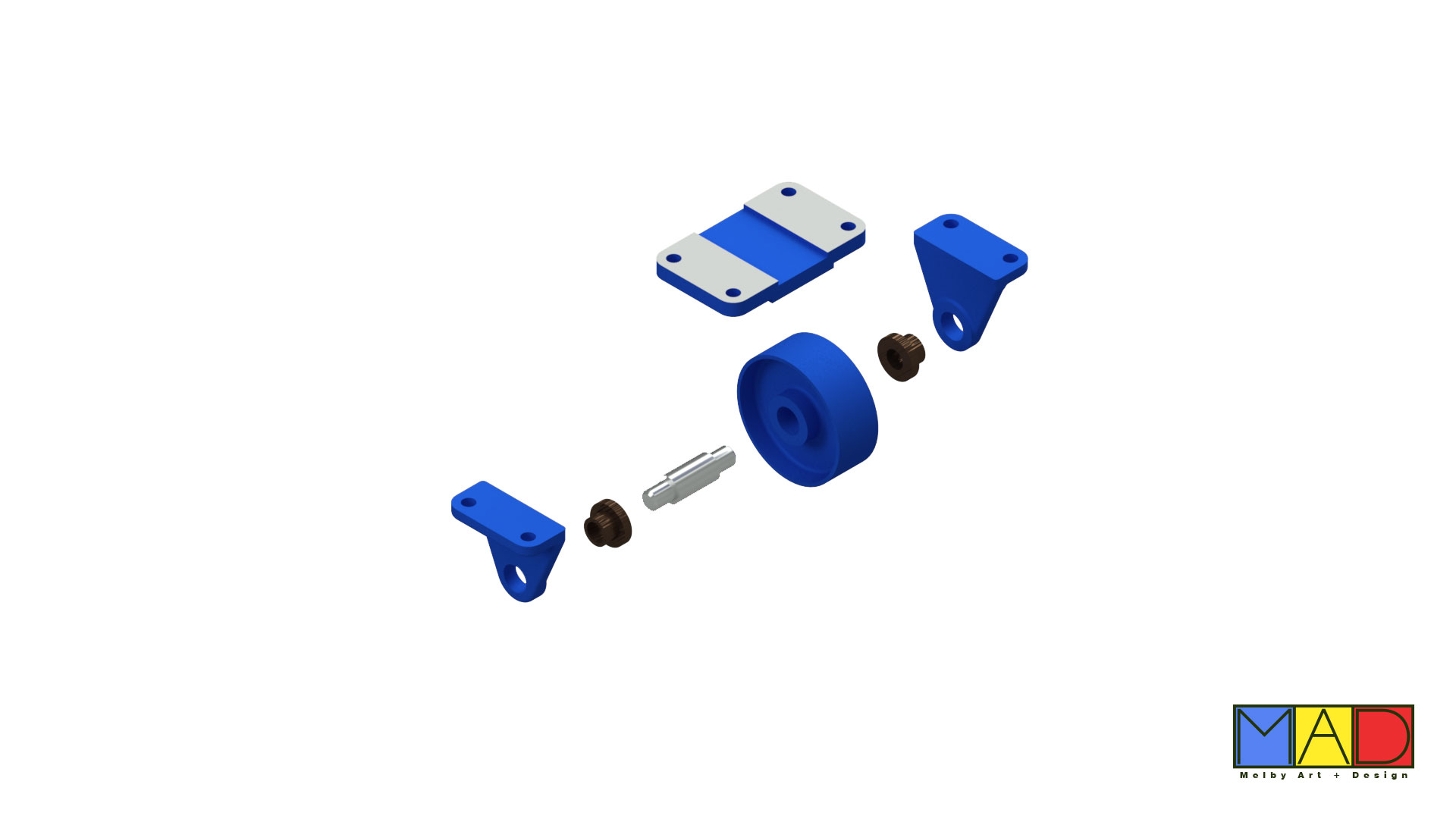

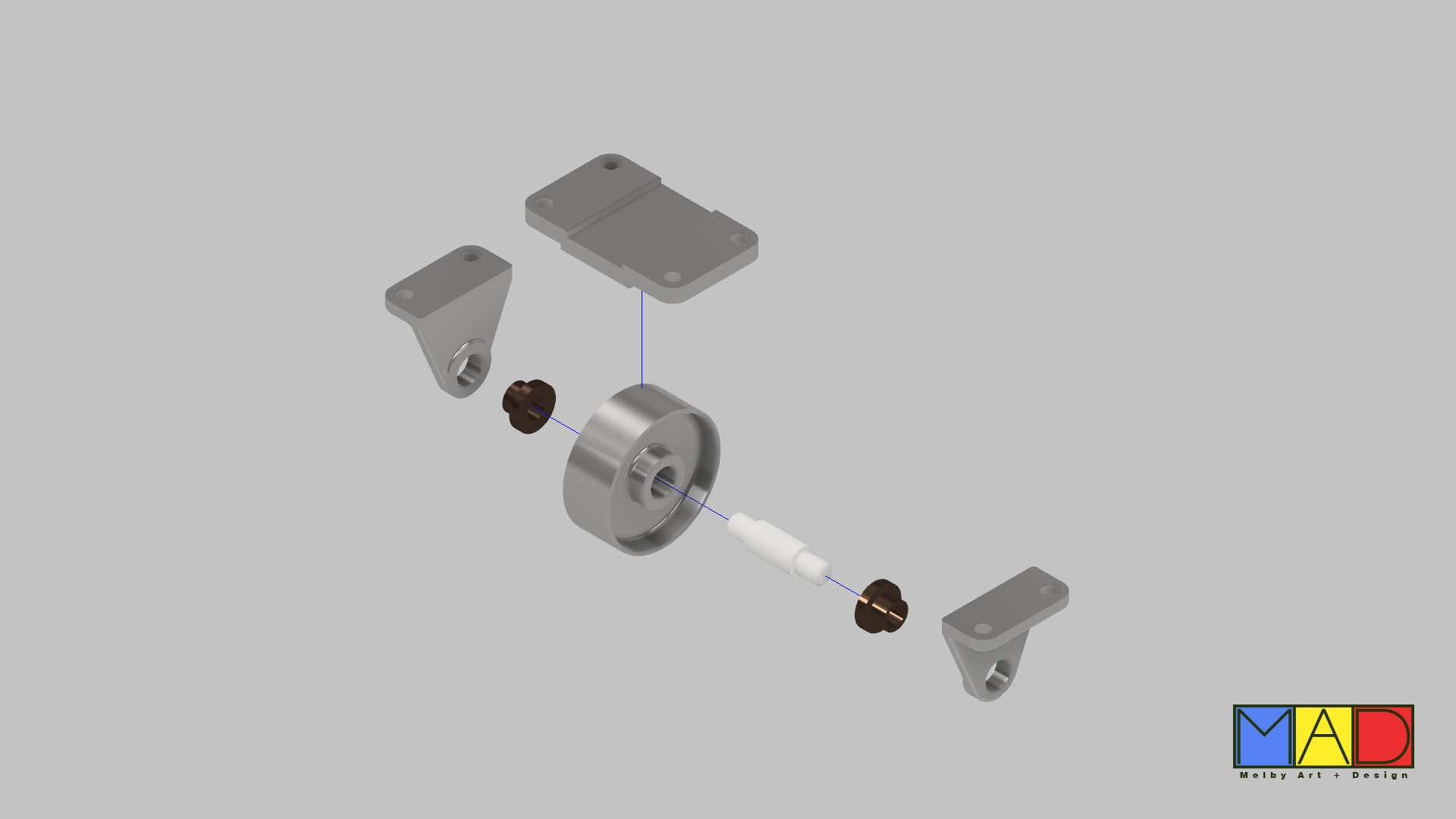

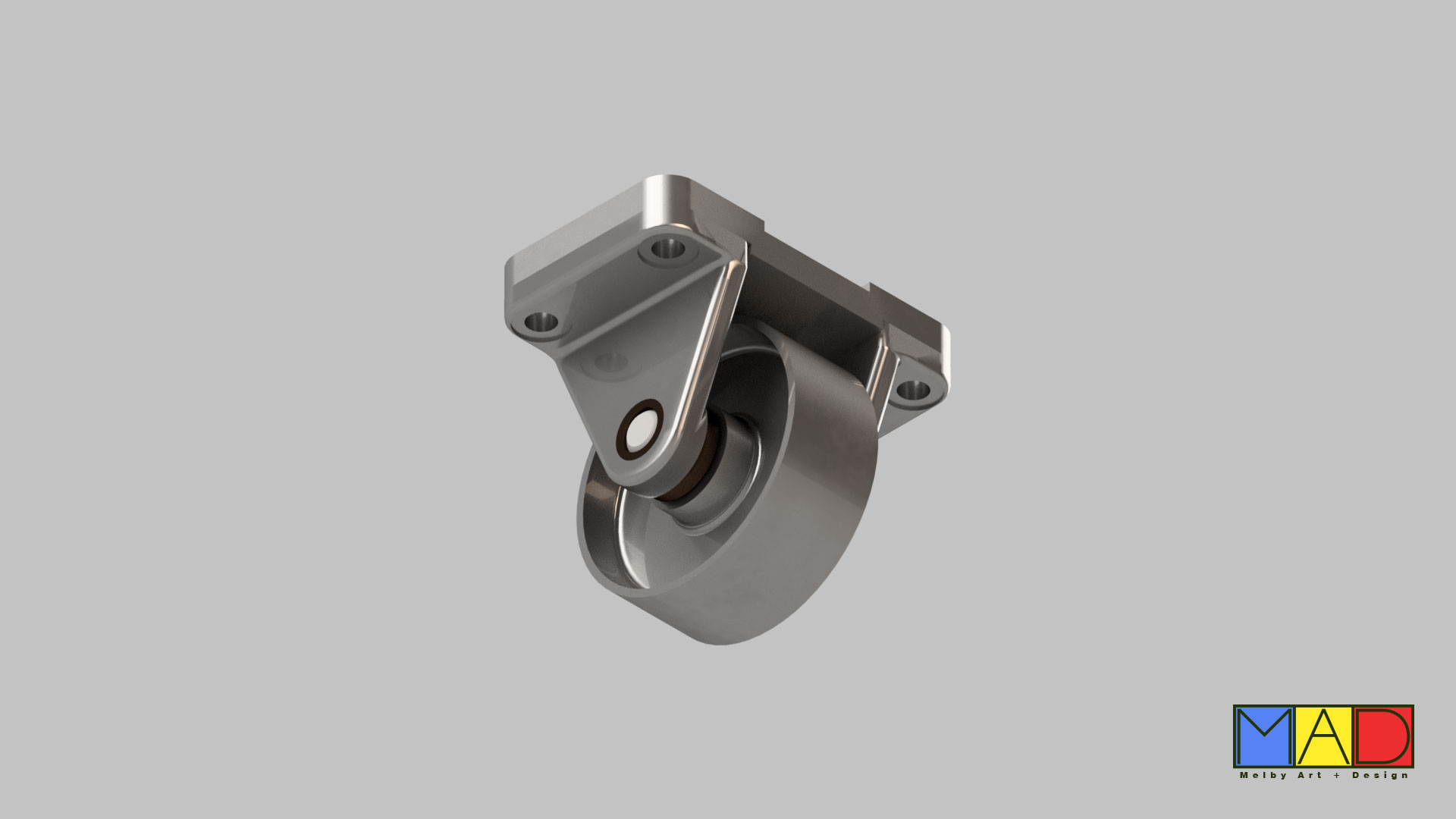

The caster assembly project was completed in both AutoCAD and Inventor. As part of an ongoin instruction in 3D modeling in my Digital Design Graphics Technology (DDGT) class, I was tasked with creating this caster assembly. This does not feature the kind of swivel capability as some casters, but instead has a much higher load-bearing capability. Four standard bolts insert between the base plate and side arms.

AutoCAD Caster PDF

Inventor Caster PDF
