Wheel Drawing Sheets

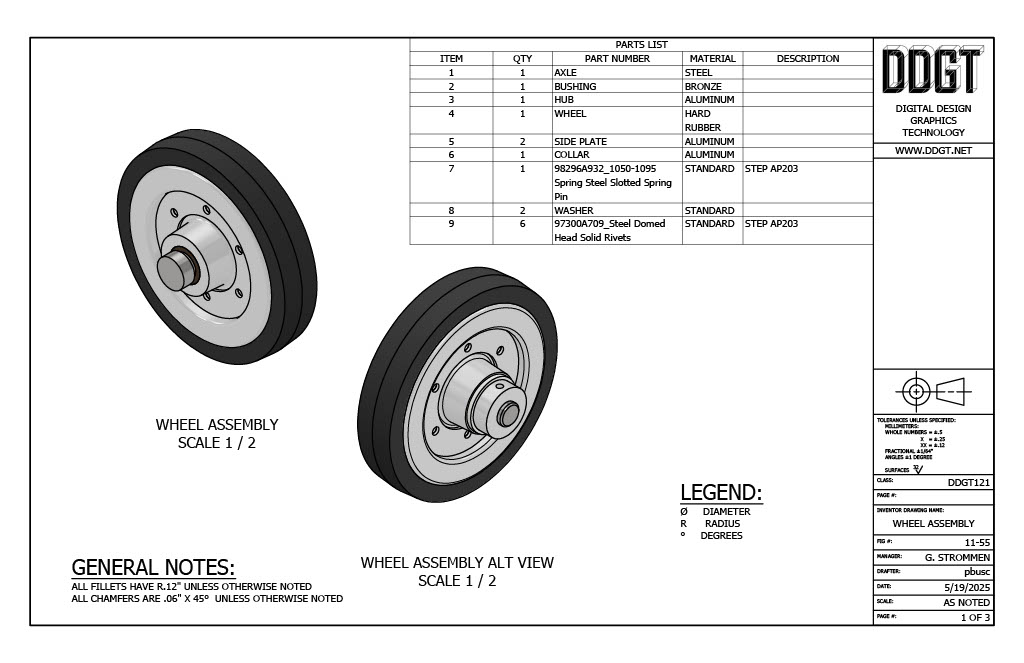

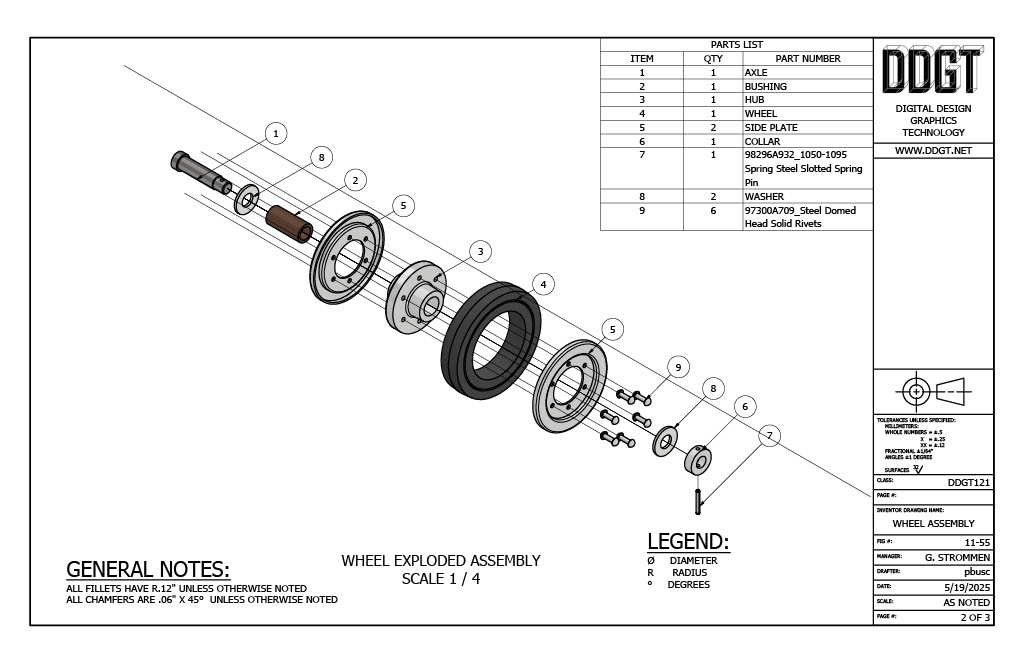

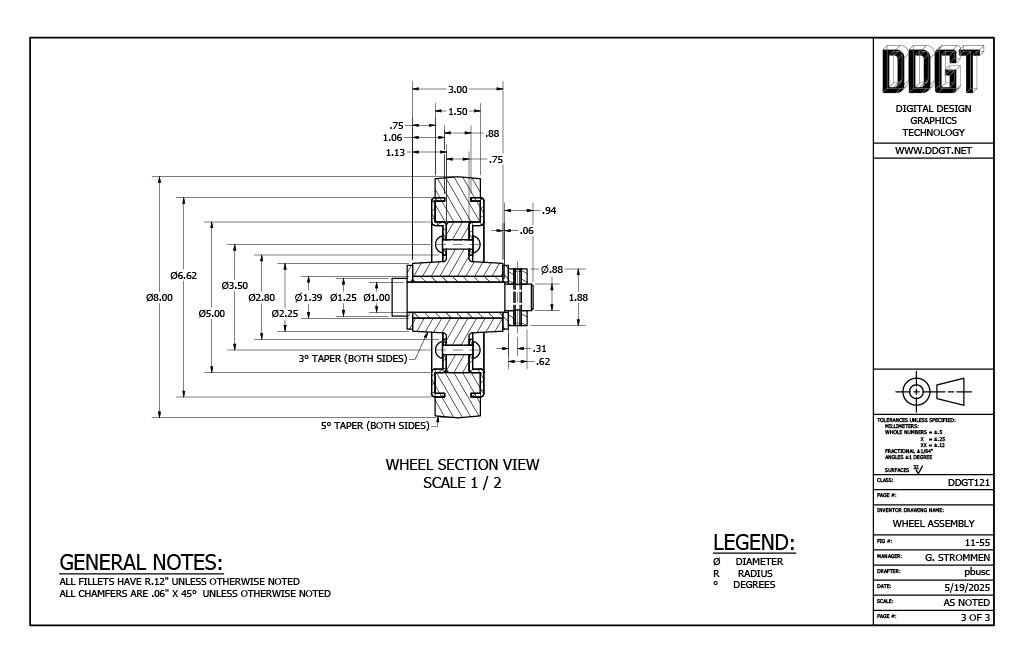

This project showcases a three-page mechanical design drawing for a wheel assembly created using Autodesk Inventor. Each page represents a key stage in the design process, including detailed part views, assembly diagrams, and dimension annotations. These pages reflect precision, technical drafting skills, and a clear understanding of design communication.
