This is a 3D assembly of a Shaft Base done in AutoCAD. It's one of the first complete assemblies I made in AutoCAD. I learned quite a bit about autoCAD including making sheets, sizing them in ANSI sizes and creating templates. I also learned section views and 3d views. Below is the link to Working Drawing Sheets and full size images of the 3d view, section view, and 2d wireframe.

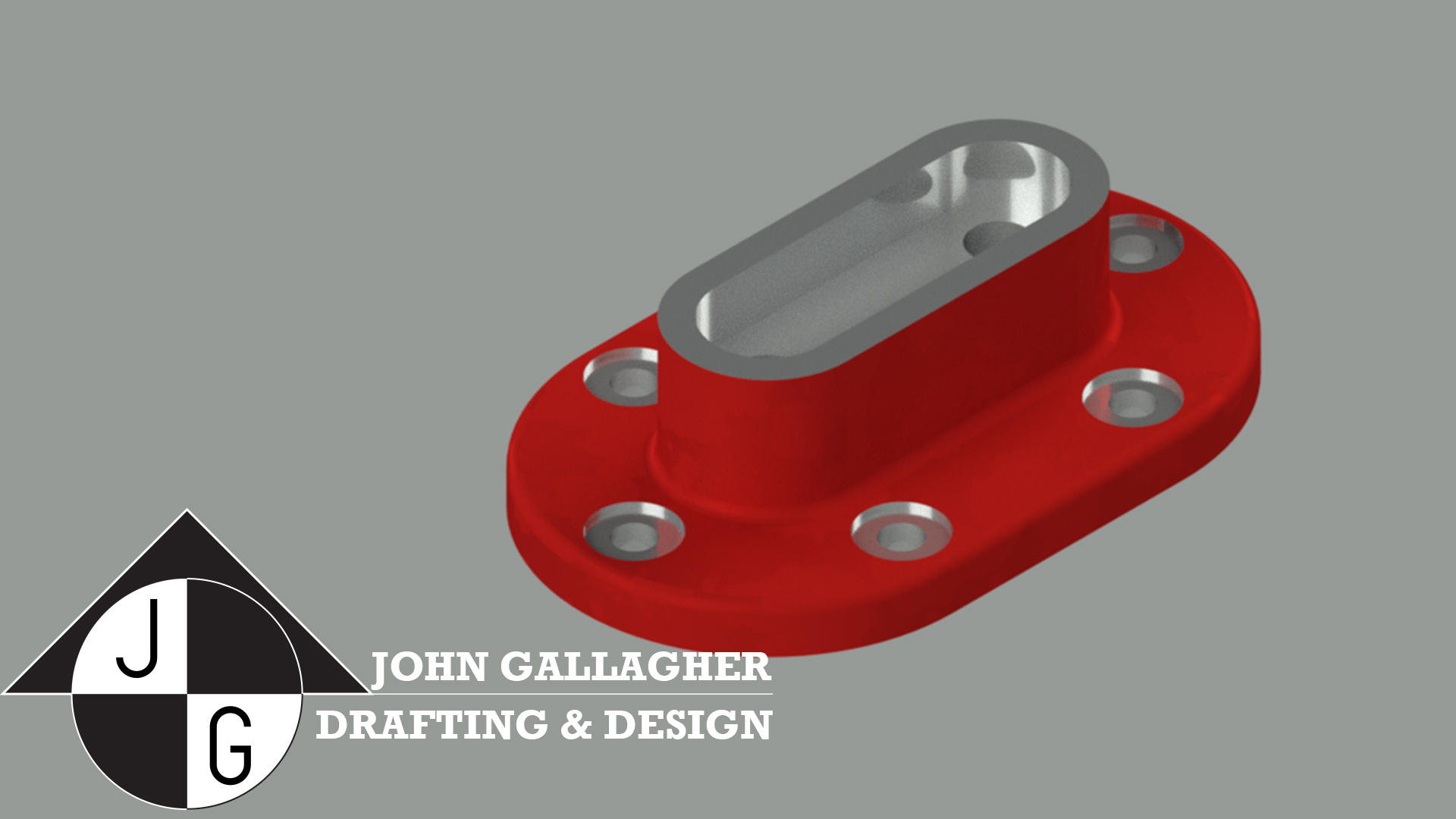

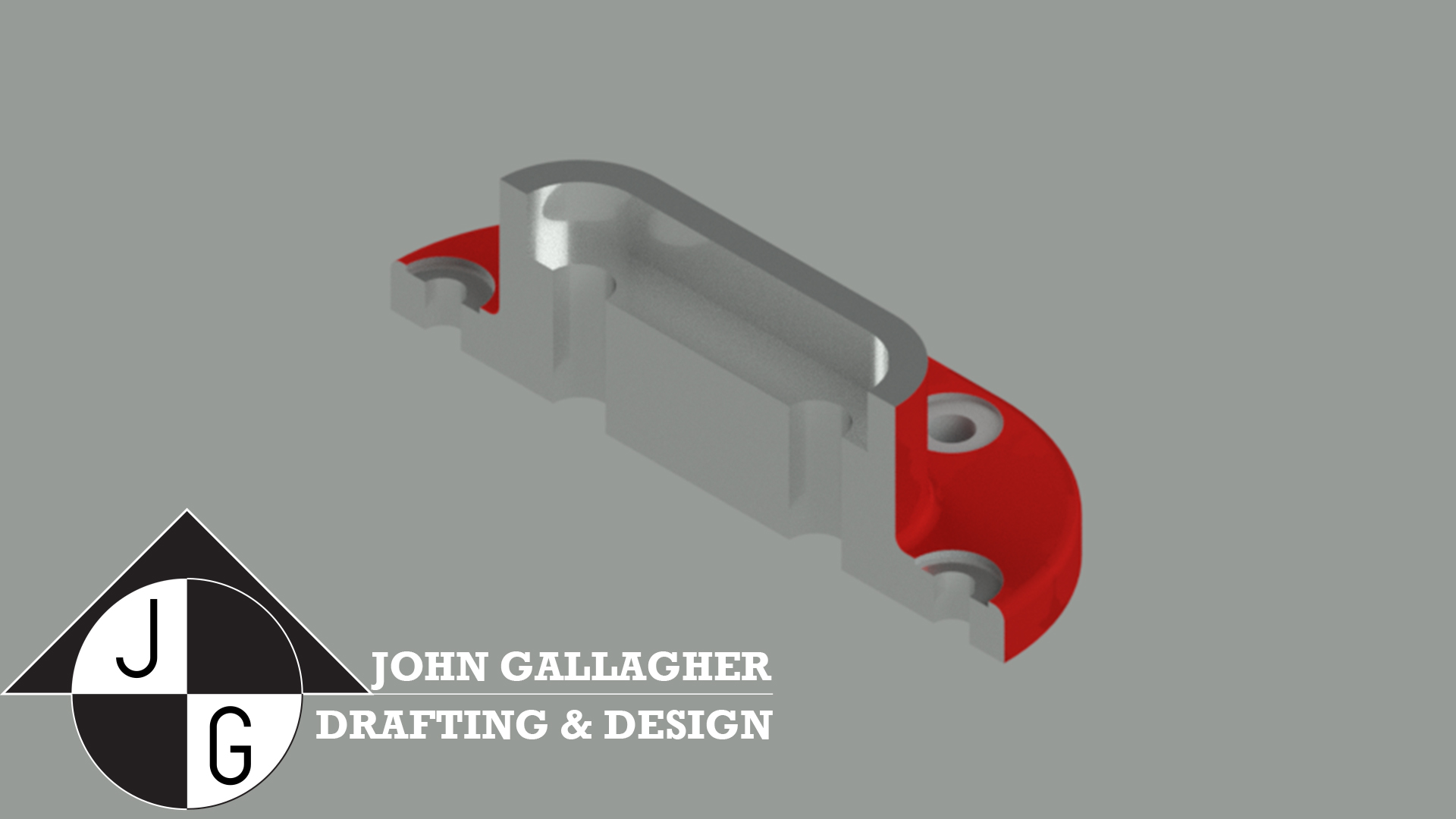

3D Shaft Base	3D Shaft Base Section View	2D Wireframe View
